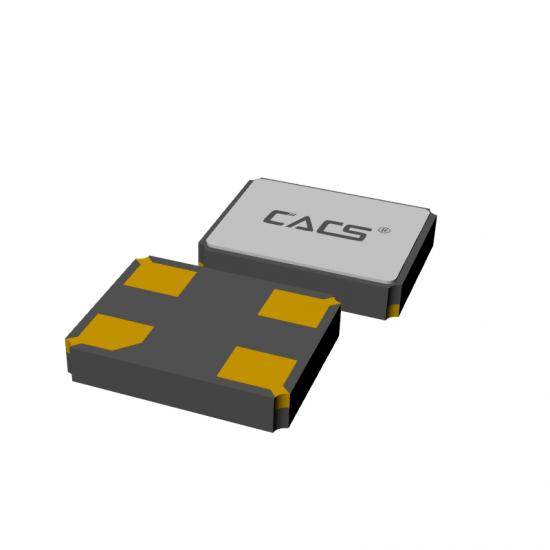

SMD Crystal Units
P1SB/P2SB/P3SB/P5SB(1610/2520/3225/5032)
Crystal resonator (SMD) is also called a surface mount MHz-level passive crystal oscillator, with various sizes, including 1.6*1.2 and 2.0*1.6, 3.2*2.5, 5.0*3.2, etc., with high cost performance, small size and high precision, used in wearable devices, smart cards, near field communication (NFC), Bluetooth, vehicle telematics, Internet of Things cars, car audio, Machine-to-machine communication (M2M), Internet of Things (IoT), true wireless headsets (TWS), smart watches, mobile phones, NB/PC, medical, and industrial equipment.

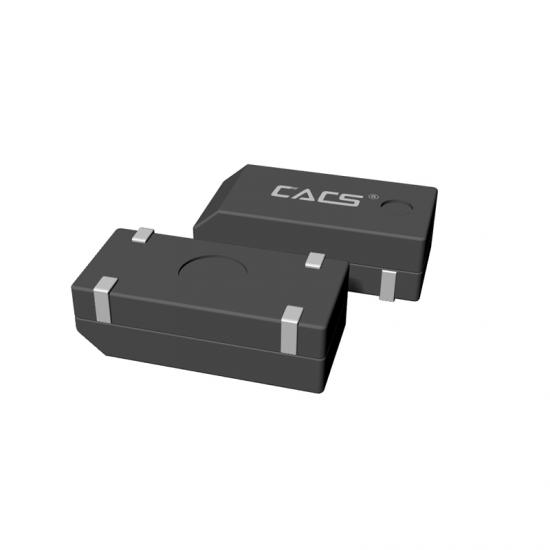

49SMD/SX/SY/PMX308 Series
This series of products can support a variety of operating temperature ranges, are high-reliability products with impact resistance and vibration resistance, support automated mounting, support AEC-Q200, lead-free, RoHS/ELV and other certifications, and are the preferred choice for electronic products working in various extreme environments, especially for new energy vehicles. Among them, the lead-free process of the PMX308 series products is an international first, and has obtained invention patents, and is used in various industrial control systems and medical auxiliary equipment.
Features 4 Pad Version 1.6x1.2 mm, Ultra-Miniature Package Tape and Reel ±10 ppm type available AT-Cut Fundamental Reflow soldering temperature:260℃ max RoHS compliant Lead free soldering Applications Small mobile devices for next generation like mobile communications short-range wireless modules, digital AV equipment and PC. Wearable devices
Features 2016 size miniature and lightweight SMD crystal resonator with a low profile of 0.5mm High precision and high reliability (Frequency aging specification of ±1x10 -6/1 year or ±3x10-6 / 5 year are available for cell phone or wireless communications systems etc. ) Allowing for high density surface mounting. Applications Small mobile devices for next generation like mobile communications short-range wireless modules, digital AV equipment and PC. Wearable devices
Features Miniature and lightweight SMD crystal resonator P2SB: 2520 size 0.55mm high Excellent heat resistance, high precision and high reliability Offers a wide frequency range P2SB: 12MHz ~ 80MHz AEC-Q200 Compliant Applications Telecommunications products, short-range wireless module and other small devices such as DVC, DSC, PDA, PC. Automotive applications such as multimedia device (AEC-Q200 Compliant).
Features Miniature and lightweight SMD crystal resonator Size:3.2x2.5x0.65 Excellent heat resistance, High precision and high reliability Offers a wide frequency range: 7.3728M-80.000MHZ AEC-Q200 Compliant Applications Telecommunication products, short-range wireless modules and other small devices such as DVC, DSC, PDA, PC. Automotive applications such as multimedia device(AEC-Q200 Compliant).
Features 5023 size miniature SMD crystal resonator with a low profile of 0.75mm. High precision and high reliability Application Suitable for mobile telecommunications as well as many other applications.
Features 6035 size miniature SMD crystal resonator with a low profile of 1.0mm. High precision and high reliability Application Suitable for mobile telecommunications as well as many other applications.
Features Typical 7.0×5.0×1.0 mm SMD MHz crystal high reliability crystal oscillators Features 7050 size miniature SMD crystal resonator with a low profile of 1.0mm. High precision and high reliability RoHS compliant Lead free soldering Ceramic seam weld package with excellent reliability performance, available to surface mount technology and IR reflow process Application Suitable for mobile telecommunications, automotive, notebook,computer peripherals,hard disk,Mp3 player, audio, as well as many other applications.
Features Typical 5.0×3.2×1.0 mm Glass seal SMD crystal 5032 size miniature SMD crystal resonator with a low profile of 1.0mm Excellent heat resistance, high precision, and high reliability Offers wide frequency range from a comparatively low 7MHz up to 70MHz. AEC-Q200 Compliant Typical Frequency: 12MHz,16MHz, 20MHz,25MHz,27MHz,28MHz,40MHz RoHS compliant Lead free soldering Application Suitable for PDA, car navigation systems, digital AV equipment, automotive, notebook,computer peripherals,hard disk,office automation, audio & video as well as many other applications
Features Typical 6.0×3.5×1.0 mm Glass seal SMD crystal 6035 size miniature SMD crystal resonator with a low profile of 1.0mm Excellent heat resistance, high precision, and high reliability Offers wide frequency range from a comparatively low 7.3728MHz up to 80.000MHz. AEC-Q200 Compliant RoHS compliant Lead free soldering Typical Frequency: 12MHz,16MHz, 20MHz,25MHz,27MHz,28MHz,40MHz Application Suitable for PDA, car navigation systems, digital AV equipment, automotive, notebook,computer peripherals,hard disk,office automation, audio & video as well as many other applications
Features 8045 size miniature SMD crystal resonator with a low profile of 1.6mm Excellent heat resistance, high precision, and high reliability Offers wide frequency range from a comparatively low 7MHz up to 70MHz. AEC-Q200 Compliant Typical 8.0×4.5×1.6 mm Glass seal SMD crystal RoHS compliant Lead free soldering Application Suitable for PDA, car navigation systems, digital AV equipment, automotive, notebook,computer peripherals,hard disk,office automation, audio & videoas well as many other applications
Features High precision availability Resistance welded Ideal for large pullability application Wide frequency range Tight stability & extendedtemperature
Features A surface mount version of the AT-49. High reliability by a hermetically sealed metal package. Correspond to automatic mounting and reflow soldering. AEC-Q200 Compliant
